Digital Multimeter for Accurate Electrical Measurements

This digital multimeter offers precise readings of voltage, current, and resistance, suitable for electricians, technicians, and advanced DIY users. It is designed for reliable use in residential, commercial, and DC electrical systems, providing accurate diagnostics across a wide range of applications.

Key Features

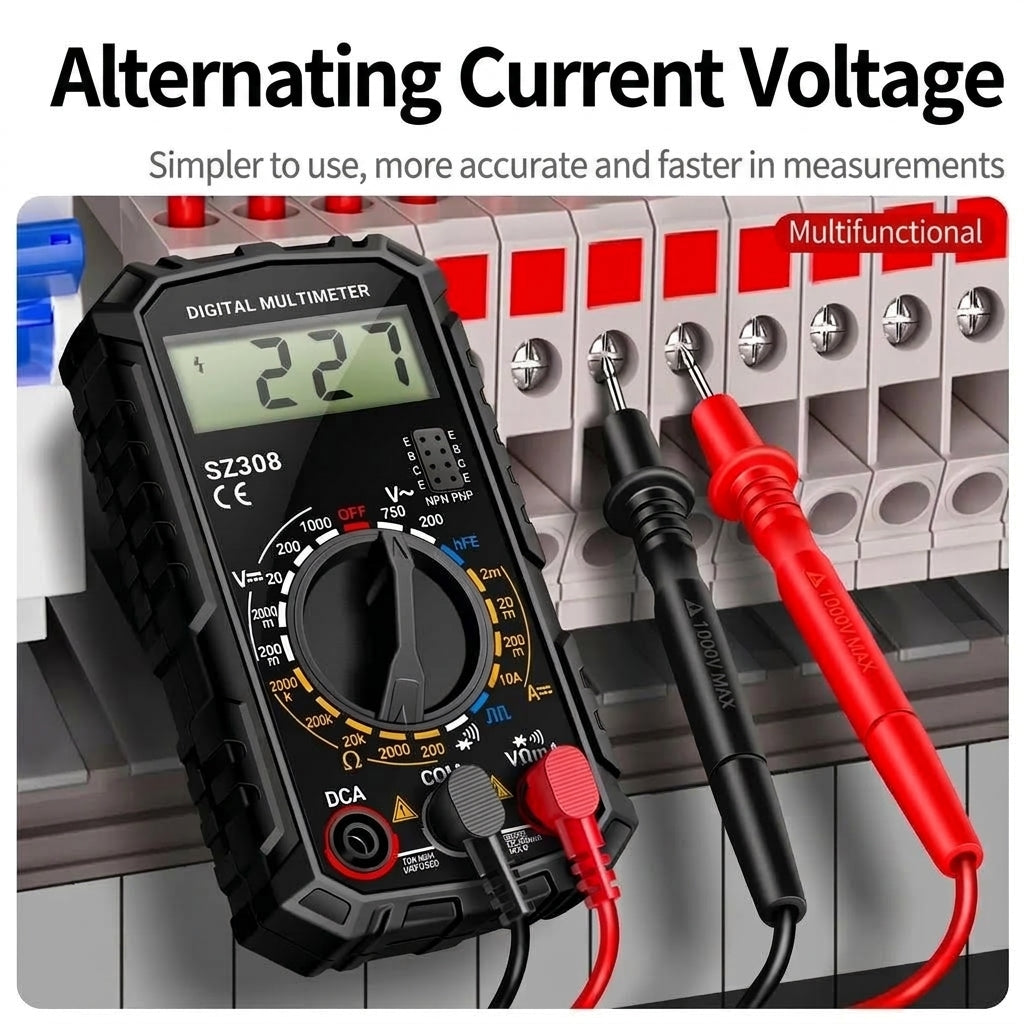

• Wide voltage range: Measures AC voltage up to 750 V and DC voltage up to 1000 V for diverse electrical systems
• Precise current measurement: DC current range from 0.002 A to 10 A with 0.00001 A resolution for detailed diagnostics
• Extensive resistance range: Up to 2,000,000 Ω for thorough circuit and component testing

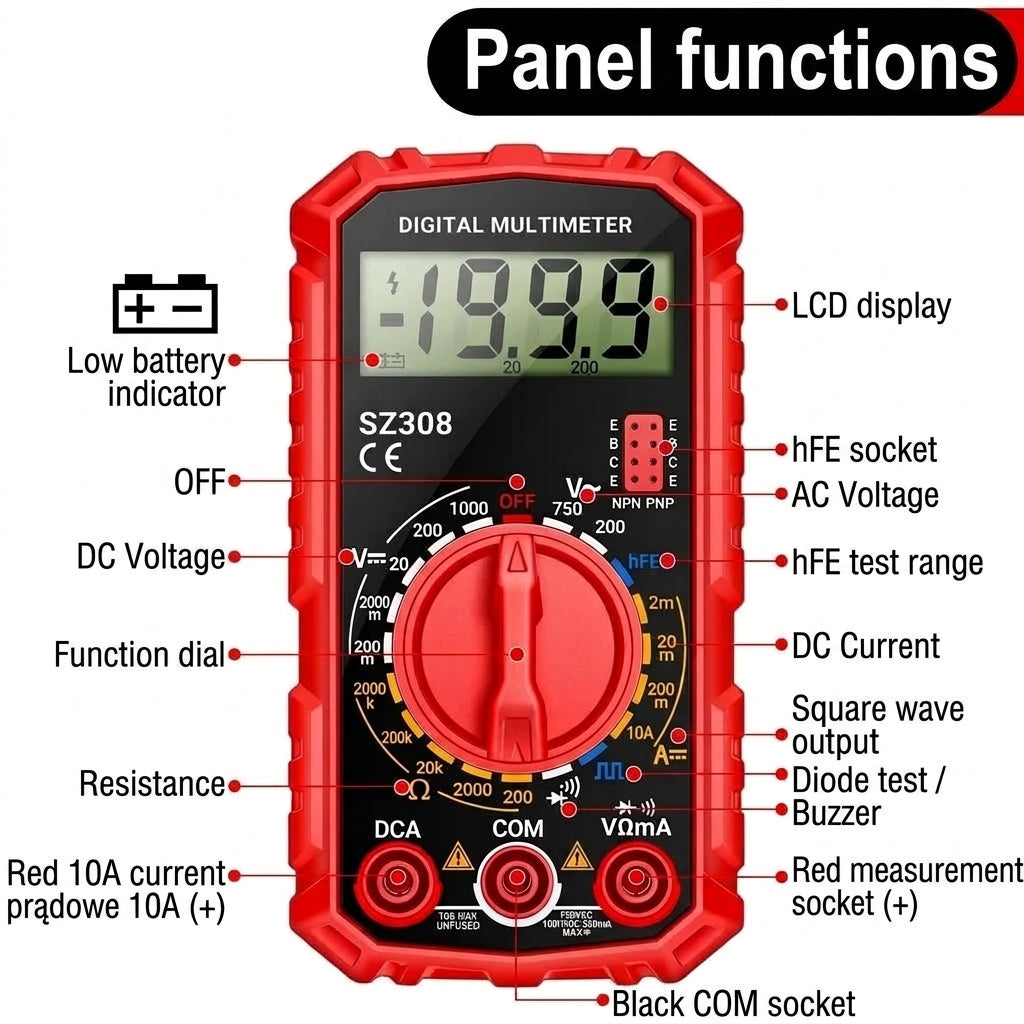

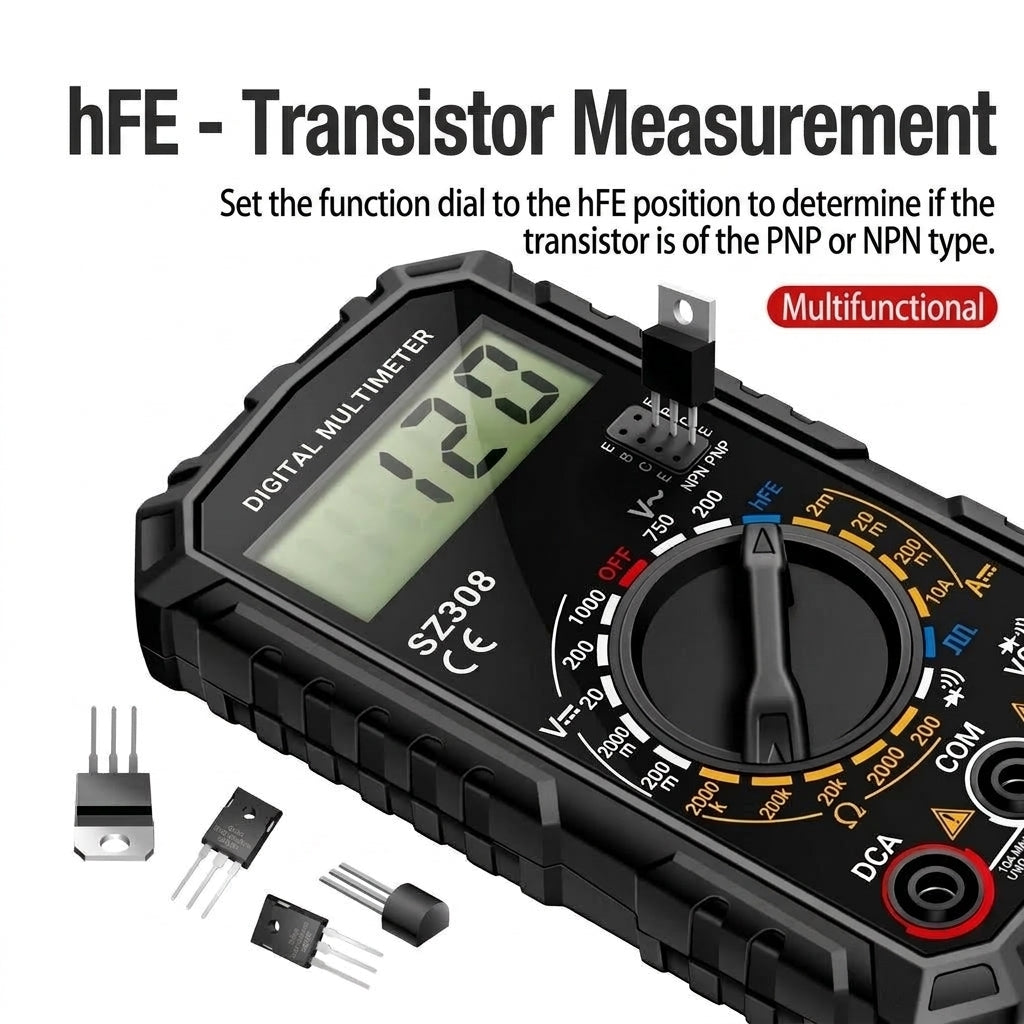

• Multifunctional testing: Includes diode test, transistor hFE measurement, buzzer, and square wave generator
• Durable design: ABS housing and 70 cm test leads for convenient and reliable field use

Specifications

• AC voltage range: 0–750 V
• DC voltage range: 0.2–1000 V
• DC current range: 0.002–10 A
• DC current resolution: 0.00001 A
• Resistance range: 0–2,000,000 Ω
• Test functions: Diode, transistor hFE, buzzer, square wave
• Display: Digital with max 1999 counts
• Test lead length: 70 cm

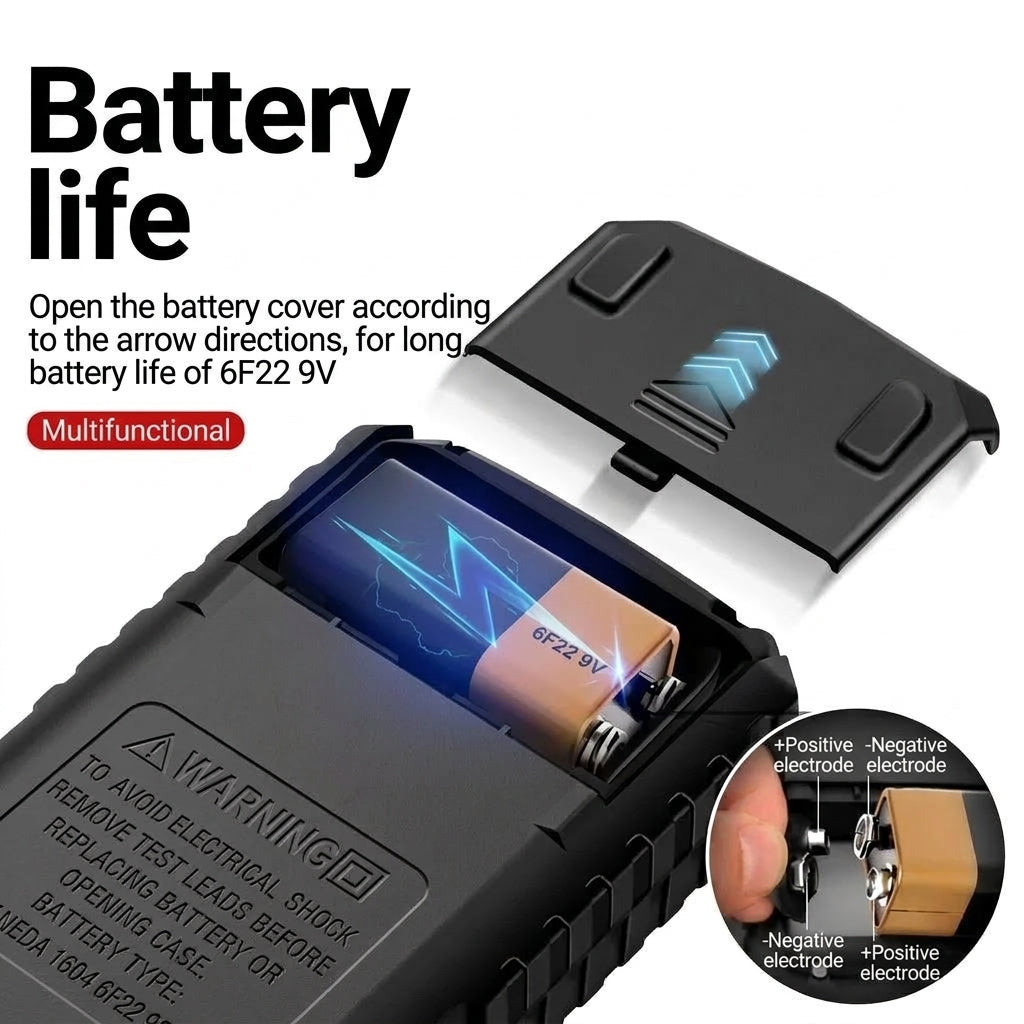

• Power supply: 9 V battery (6F22)
• Low battery indicator: Yes

FAQ

1. Who is this multimeter for? It is intended for electricians, technicians, and DIY enthusiasts requiring reliable electrical measurements.
2. What is the maximum voltage measurable? The device measures up to 750 V AC and 1000 V DC.

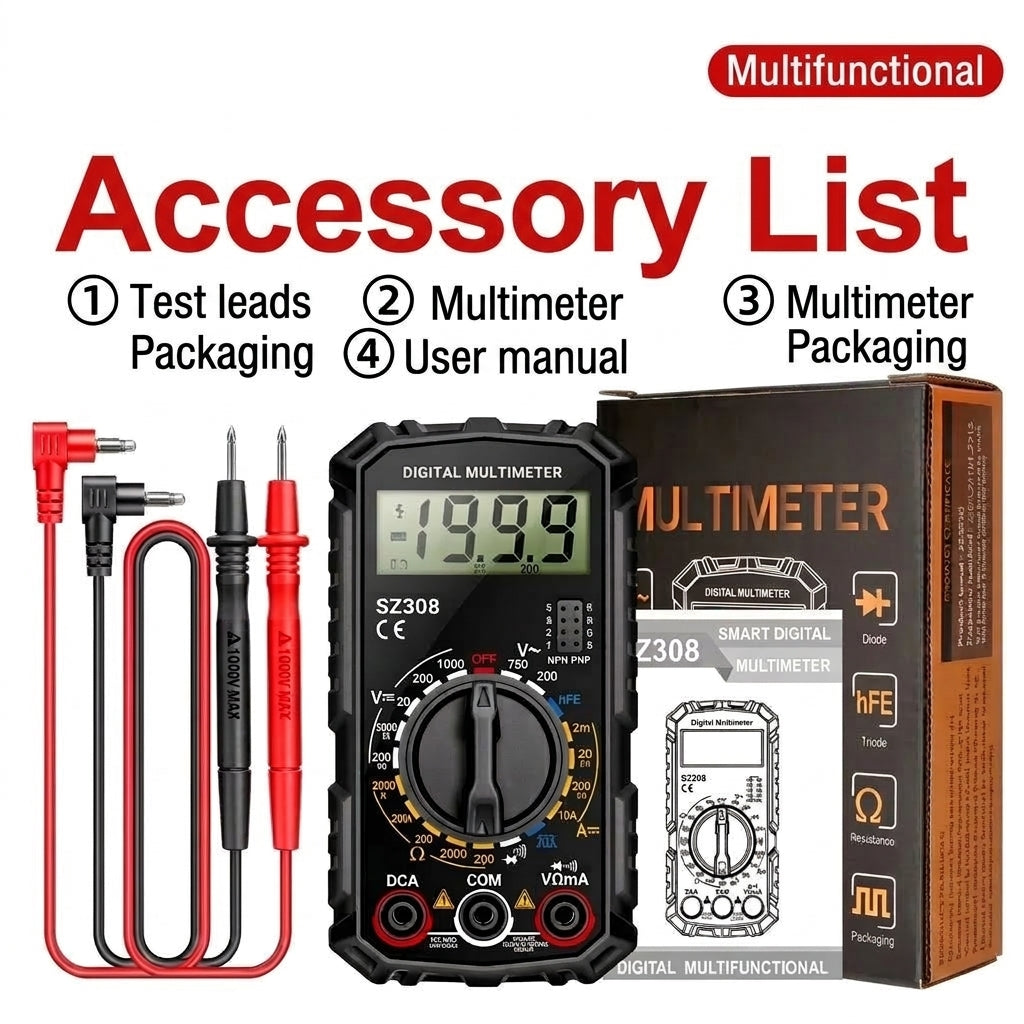

3. Are test leads and instructions included? Yes, a 70 cm test lead and an English user manual are provided.
4. What type of battery is required? The multimeter uses a standard 9 V battery (6F22).
5. Is the casing suitable for field use? Yes, the ABS housing is durable for both workshop and field environments.
